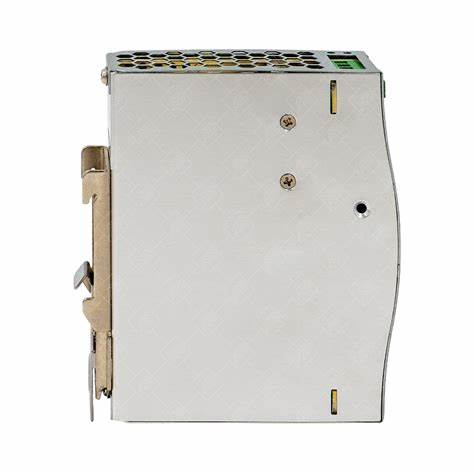

UNO EDR-120-24 – 24V 5A DIN Rail Power Supply

Output Power: 120W Output Voltage: 24V DC Current: 5A
Mounting: DIN rail (TS-35/7.5 or 15) Enclosure: Slim metal case (40mm width)

Key Specifications:

• Input Voltage: 90–264V AC / 127–370V DC
• Output Voltage: 24V DC (adjustable 24–28V)
• Efficiency: Up to 87.5%
• Ripple & Noise: ≤ 120mVp-p
• Protection Features:
• Overload (105–130%, constant current limiting)
• Overvoltage (29–33V, shutdown mode)
• Over temperature (shutdown, auto-recovery)
• Short circuit (auto recovery)
• Operating Temperature: -20°C to +60°C (derating above 50°C)
• Dimensions: 40 × 125.2 × 113.5mm
• Certifications: UL508, TUV EN62368-1, CE, RoHS
• MTBF: > 2.7 million hours (Telcordia SR-332)

Features:

• Slim 40mm width saves valuable panel space
• LED indicator for DC OK status
• Fully enclosed metal housing with Class I insulation
• Built-in EMI filter and surge protection
• Complies with heavy industrial EMC standards

Applications:

• PLC and sensor power supply
• Industrial automation and control systems
• Building management and HVAC
• Security and access control systems
