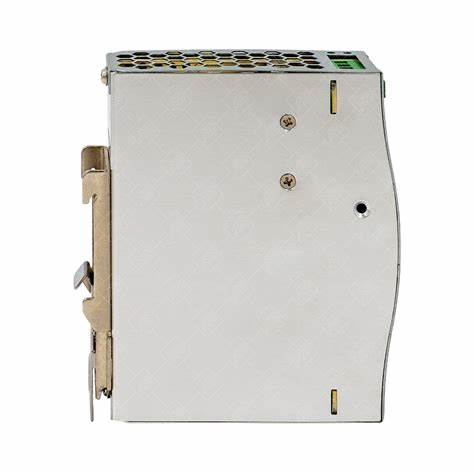

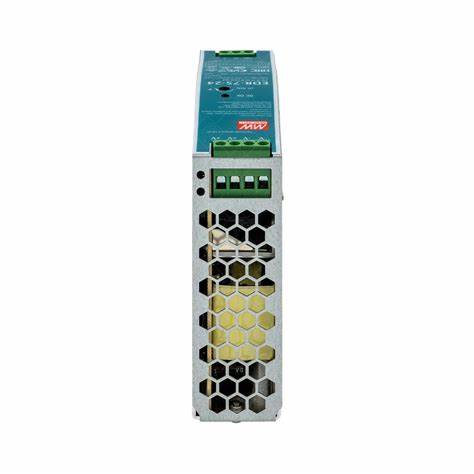

UNO EDR-75-12 – 12V 6.3A DIN Rail Power Supply

Output Power: 75.6W Output Voltage: 12V DC Current: 6.3A
Mounting: DIN rail (TS-35/7.5 or 15) Enclosure: Slim metal case (32mm width)

Key Specifications:

• Input Voltage: 90–264V AC / 127–370V DC
• Output Voltage: 12V DC (adjustable 12–14V)
• Efficiency: Up to 85.5%
• Ripple & Noise: ≤ 80mVp-p
• Protection Features:
• Overload (105–130%, constant current limiting)
• Overvoltage (14–17V, shutdown mode)
• Over temperature (shutdown, auto-recovery)
• Short circuit (auto recovery)
• Operating Temperature: -20°C to +60°C (derating above 50°C)
• Dimensions: 32 × 125.2 × 102mm
• Certifications: UL508, TUV EN62368-1, CE, RoHS
• MTBF: > 2.7 million hours (Telcordia SR-332)

Features:

• Slim 32mm width saves valuable panel space
• LED indicator for DC OK status
• Fully enclosed metal housing with Class I insulation
• Built-in EMI filter and surge protection
• Complies with heavy industrial EMC standards

Applications:

• PLC and sensor power supply
• Industrial automation and control systems
• Building management and HVAC
• Security and access control systems
