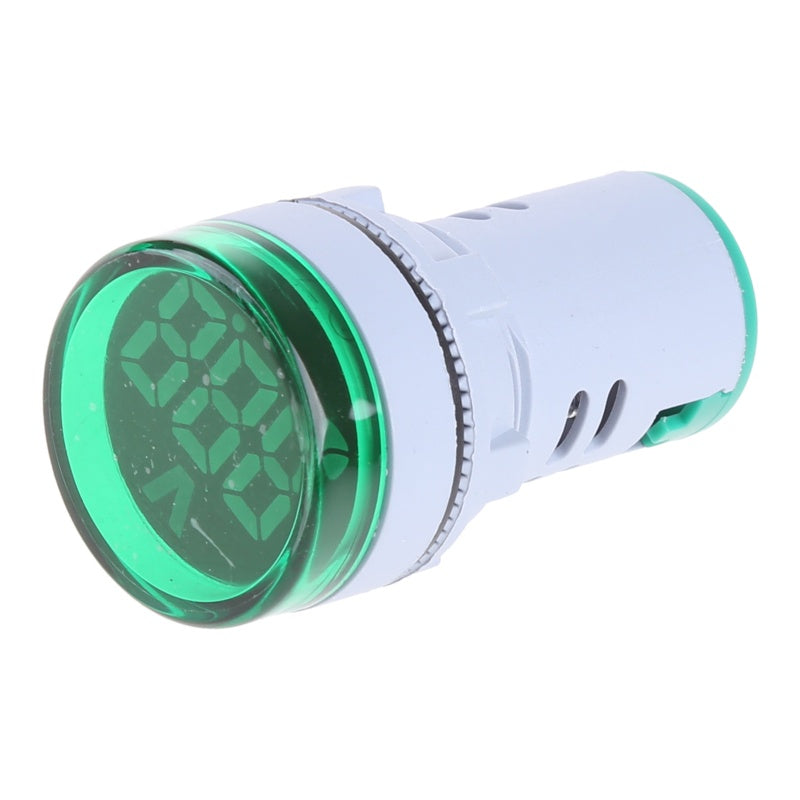

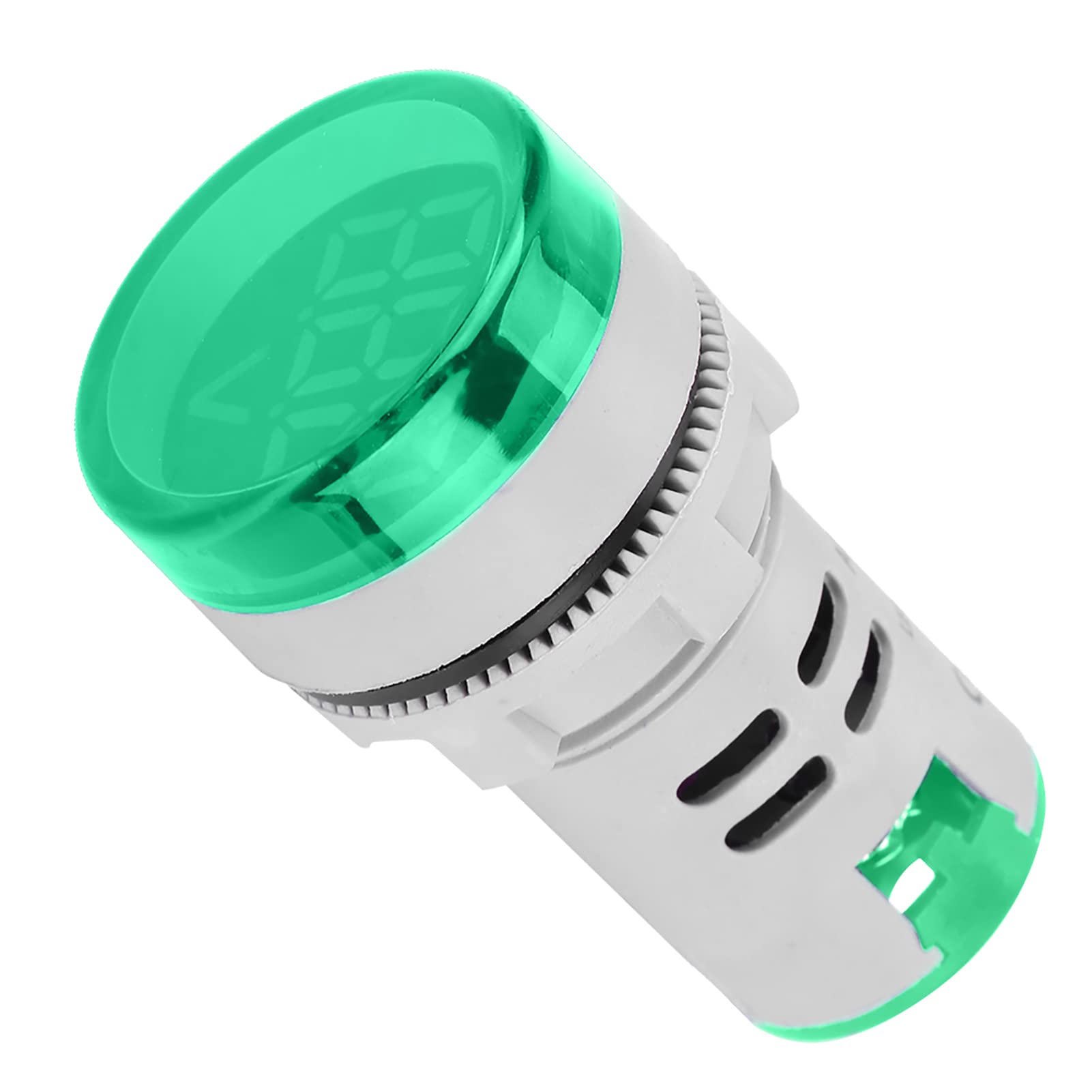

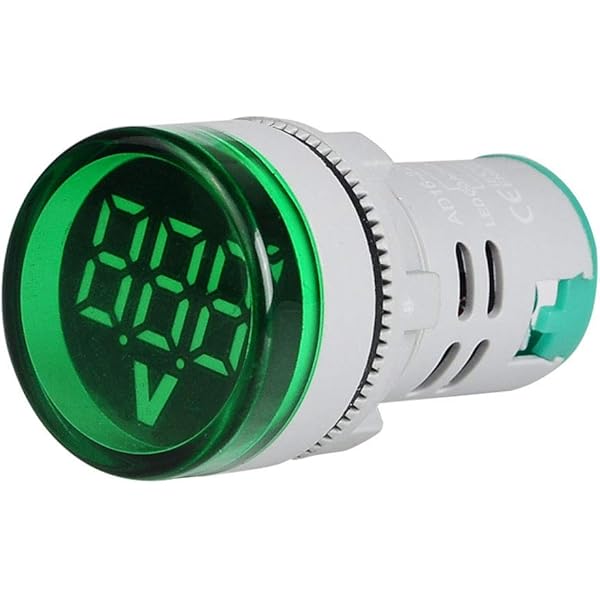

UNO Green Indicator Light with Digital Voltage Display – 24VDC, 22mm

Model: UNO-VD24G
Brand: UNO
Mounting: 22.5 mm panel cutout (standard industrial size)
Display: Integrated 3-digit LED voltage readout (Green)

Technical Specifications:

• Operating Voltage: 24V DC (±10%)
• Display Range: 0–99.9V DC
• LED Color: Green (high-visibility, wide viewing angle)
• Power Consumption: <0.5W
• Ingress Protection: IP65 (front), IP20 (rear terminals)
• Connection Type: Screw terminals (0.5–2.5 mm² wire)
• Housing Material: Flame-retardant polycarbonate (UL94-V0)
• Operating Temperature: -20°C to +55°C
• Certifications: CE, RoHS compliant

Key Features:

• Combines pilot light and voltmeter in one compact unit
• Real-time voltage monitoring for fast diagnostics
• Space-saving design for dense control panels
• Durable construction for harsh environments
• Easy installation with threaded locking ring and screw terminals

Applications:

• Power distribution boards
• PLC and automation panels
• Battery and inverter monitoring
• Generator enclosures
• HVAC and factory equipment

Product Code: UNO-VD24G
Packaging: Individually boxed with mounting nut and wiring guide
Availability: In stock – ships within 24 hours
Warranty: 12 months manufacturer warranty
