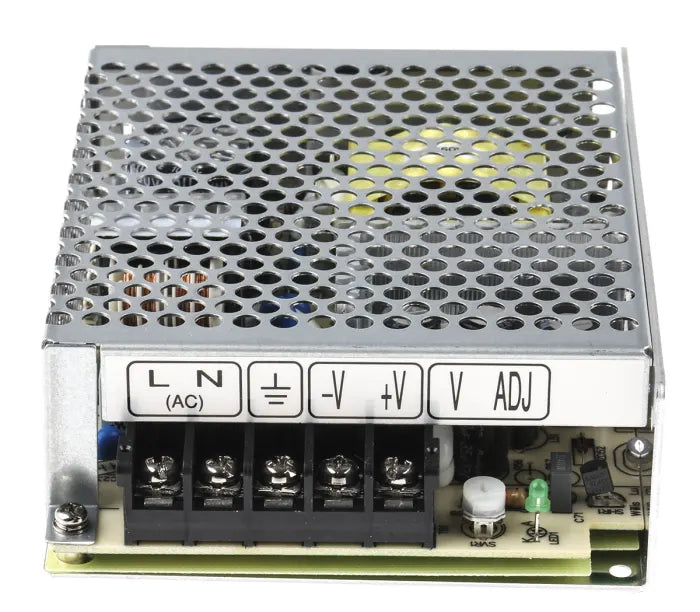

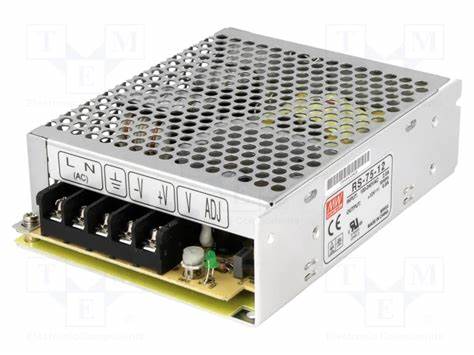

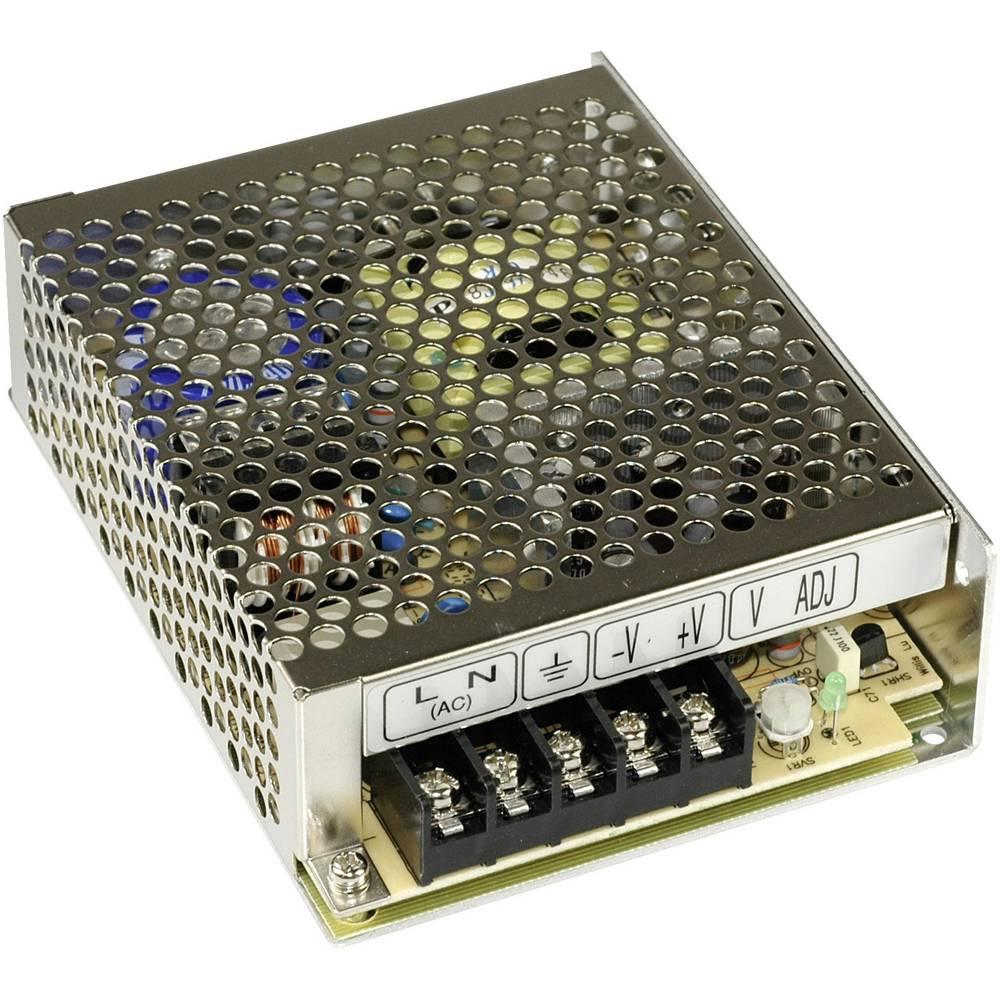

UNO LRS-75-24 – 24V 3.2A Power Supply Output Power: 76.8W Output Voltage: 24V DC Current: 3.2A

Mounting: Chassis mount Enclosure: Low-profile metal case (30mm height)

Key Specifications:

• Input Voltage: 85–264V AC / 120–373V DC
• Output Voltage: 24V DC (adjustable 21.6–28.8V)
• Efficiency: Up to 90%
• Ripple & Noise: ≤ 150mVp-p
• Protection Features:
• Overload (110–150%, hiccup mode)
• Overvoltage (28.8–33.6V, shutdown mode)
• Short circuit
• Operating Temperature: -30°C to +70°C (derating above 50°C)
• Dimensions: 99 × 97 × 30mm
• Certifications: UL, CE, TUV, RoHS
• MTBF: > 3.3 million hours (Telcordia SR-332)

Applications:

• PLC and sensor power supply
• LED lighting and signage
• Industrial control systems
• Security and access systems
