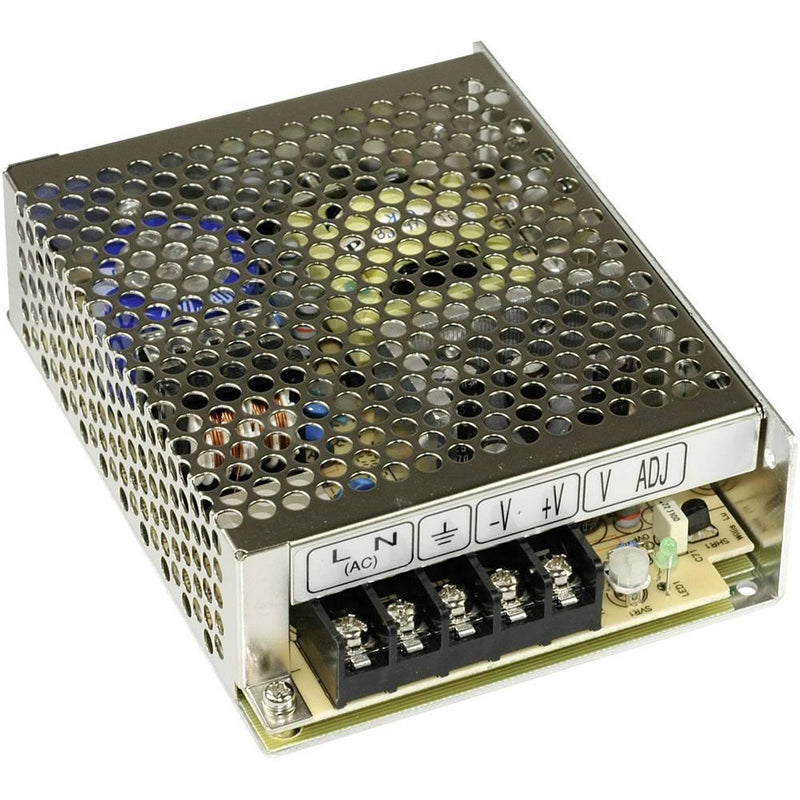

UNO LRS-75-5 – 5V 14A Power Supply Output Power: 70W Output Voltage: 5V DC Current: 14A

Mounting: Chassis mount Enclosure: Metal case (low-profile 30mm)

Key Specifications:

• Input Voltage: 85–264V AC / 120–373V DC
• Output Voltage: 5V DC (adjustable 4.5–5.5V)
• Efficiency: Up to 86.5%
• Ripple & Noise: ≤ 100mVp-p
• Protection Features:
• Overload (110–150%, hiccup mode)
• Overvoltage (5.75–6.75V, shutdown mode)
• Short circuit
• Operating Temperature: -30°C to +70°C (derating above 50°C)
• Dimensions: 99 × 97 × 30mm
• Certifications: UL, CE, TUV, RoHS
• MTBF: > 3.3 million hours (Telcordia SR-332)

Applications:

• 5V logic circuits and microcontrollers
• LED signage and lighting
• PLC and sensor power supply
• Embedded and automation systems
