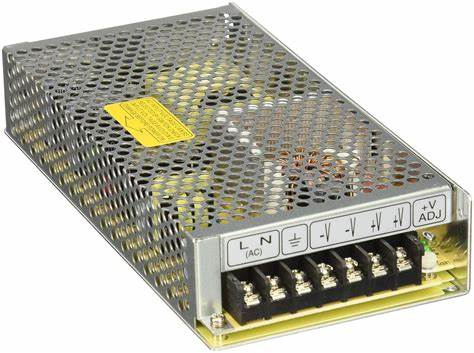

UNO RS-150-12 – 12V 12.5A Power Supply Output Power: 150W Output Voltage: 12V DC Current: 12.5A

Mounting: Chassis mount Enclosure: Metal case

Key Specifications:

• Input Voltage: 88–132V AC / 176–264V AC (selectable by switch), 248–373V DC
• Output Voltage: 12V DC (adjustable 10.8–13.2V)
• Efficiency: Up to 83%
• Ripple & Noise: ≤ 120mVp-p
• Protection Features:
• Overload (110–150%, hiccup mode)
• Overvoltage (13.8–16.2V)
• Short circuit
• Over temperature
• Operating Temperature: -25°C to +70°C (derating above 50°C)
• Dimensions: 199 × 98 × 38mm
• Certifications: UL, CE, TUV, RoHS
• MTBF: > 2.6 million hours (Telcordia SR-332)

Applications:

• PLC and sensor power supply
• LED lighting and signage
• Industrial control panels
• Security and access systems
