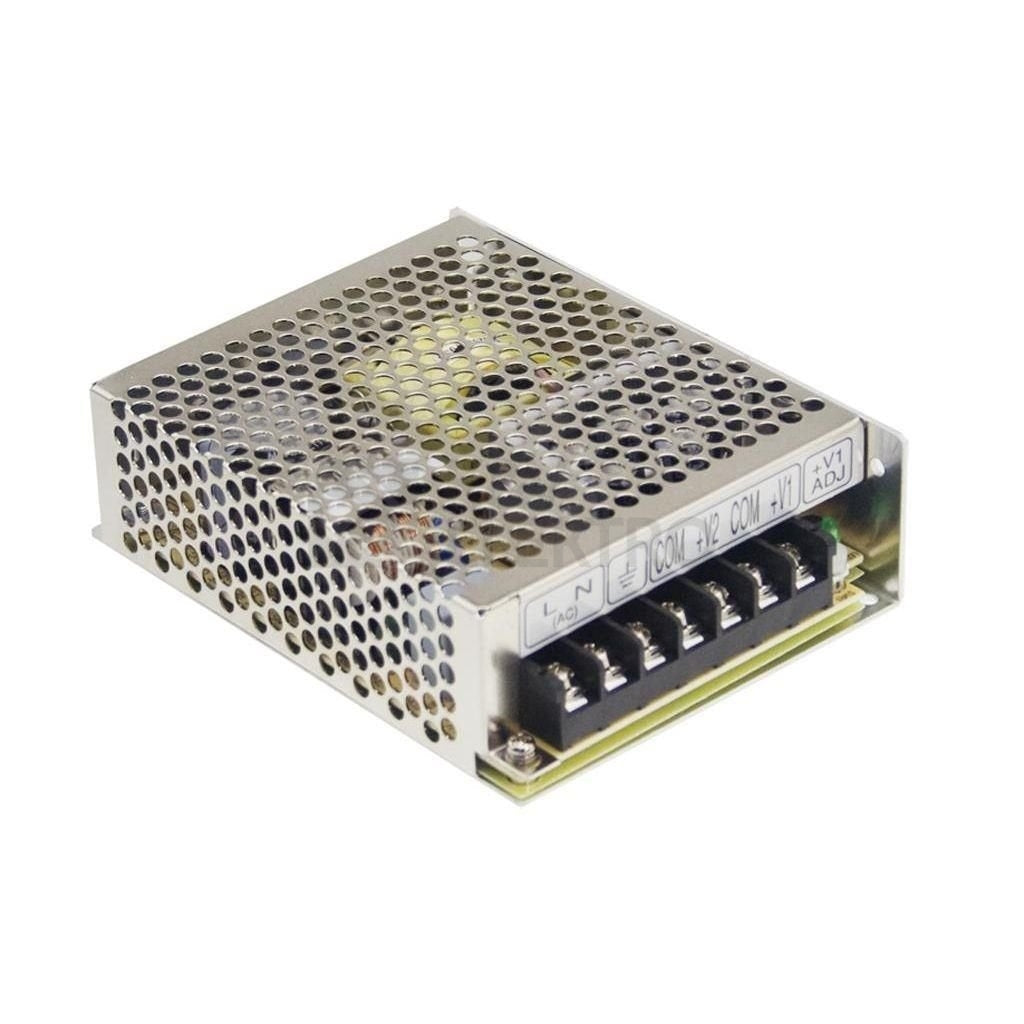

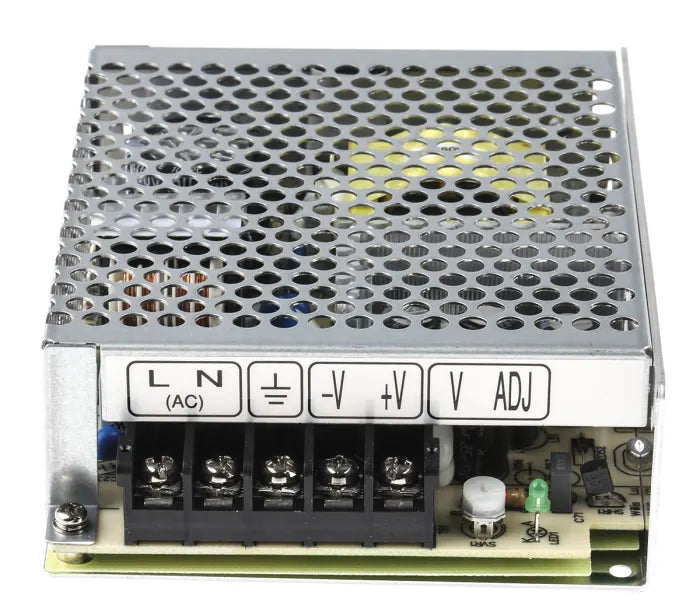

UNO RS-75-24 – 24V 3.2A AC-DC Power Supply

Output Power: 76.8W Output Voltage: 24V DC Current: 3.2A
Mounting: Chassis mount Enclosure: Enclosed metal case

Key Specifications:

• Input Voltage Range: 88–264V AC / 125–373V DC
• Output Voltage: 24V DC (adjustable 22–27.6V)
• Efficiency: Up to 88.5%
• Ripple & Noise: ≤ 120mVp-p
• Protection Features:
• Overload (110–150% rated output, hiccup mode)
• Overvoltage (27.6–32.4V)
• Short circuit
• Over temperature
• Operating Temperature: -25°C to +70°C (derating above 50°C)
• Dimensions: 129 × 97 × 38mm
• Certifications: UL, CE, TUV, RoHS compliant
• MTBF: > 2.9 million hours (Telcordia SR-332)

Applications:

• PLC and sensor power supply
• LED lighting and signage
• Industrial control systems
• Security and access control
