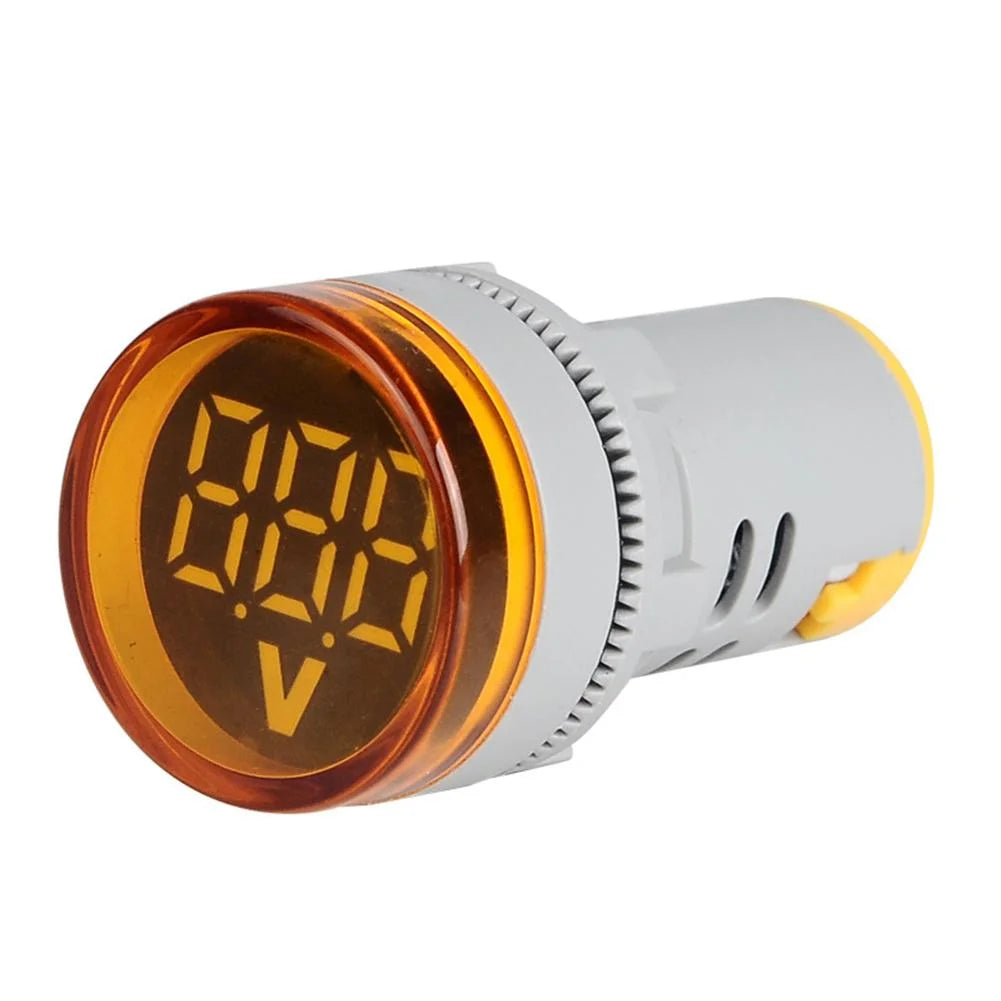

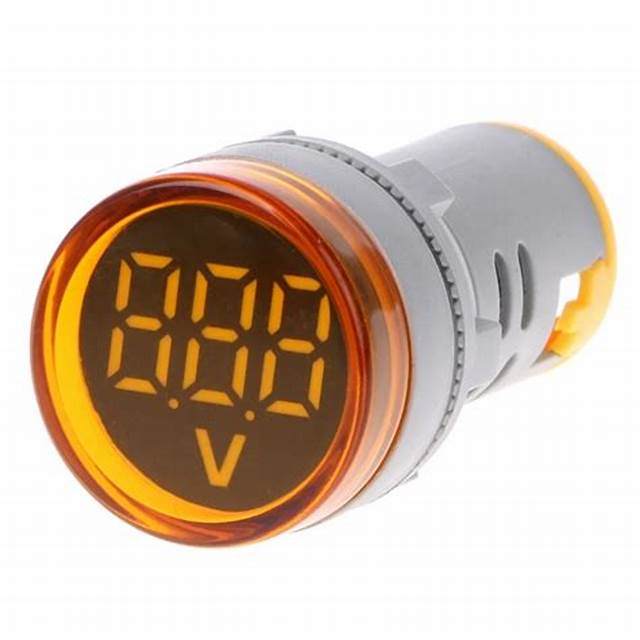

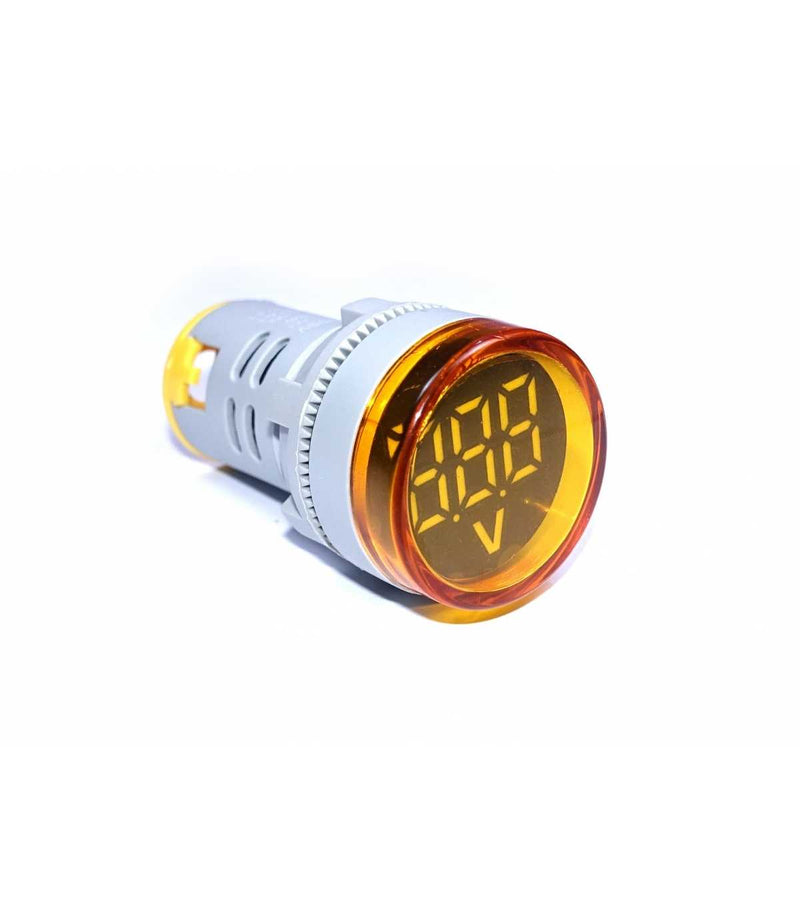

UNO Yellow Indicator Light with Digital Voltage Display – 220VAC, 22mm

Model: UNO-VD220Y
Brand: UNO
Mounting: 22.5 mm panel cutout (standard industrial size)
Display: Integrated 3-digit LED voltage readout (Yellow)

Technical Specifications:

• Operating Voltage: 220V AC (±10%)
• Display Range: 60–500V AC
• LED Color: Yellow (high-brightness, wide viewing angle)
• Power Consumption: <0.8W
• Ingress Protection: IP65 (front), IP20 (rear terminals)
• Connection Type: Screw terminals (0.5–2.5 mm² wire)
• Housing Material: Flame-retardant polycarbonate (UL94-V0)
• Operating Temperature: -25°C to +55°C
• Certifications: CE, RoHS compliant

Key Features:

• Combines pilot light and voltmeter in one compact unit
• Real-time voltage monitoring for fast diagnostics
• Space-saving design for dense control panels
• Durable construction for harsh environments
• Easy installation with threaded locking ring and screw terminals

Applications:

• Power distribution boards
• Generator and inverter enclosures
• PLC and automation panels
• HVAC and factory equipment
• Battery and UPS monitoring

Product Code: UNO-VD220Y
Packaging: Individually boxed with mounting nut and wiring guide
Availability: In stock – ships within 24 hours
Warranty: 12 months manufacturer warranty
