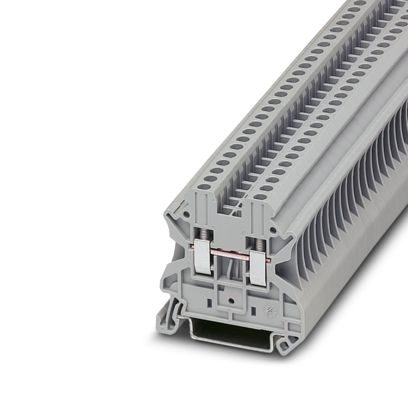

UT 2,5 – Feed-through Terminal Block | Phoenix Contact (3044076)

Compact design. Reliable performance.

The UT 2,5 terminal block offers a robust screw connection system for secure and efficient wiring in industrial control panels. Its spacious wiring chamber and compact footprint make it ideal for high-density installations.

🔧 Technical Specifications:

• Part Number: 3044076
• Connection Method: Screw connection (M3 thread)
• Rated Voltage: 1000 V
• Rated Current: 24 A
• Maximum Load Current: 32 A (with 4 mm² conductor)
• Rated Cross Section: 2.5 mm²
• Conductor Size Range:
• Rigid: 0.14 mm² – 4 mm²
• Flexible: 0.14 mm² – 4 mm²
• AWG: 26 – 12
• Stripping Length: 9 mm
• Mounting Type: DIN rail (NS 35/7.5, NS 35/15)
• Color: Gray (RAL 7042)
• Width: 5.2 mm
• Height: 46.9 mm
• Depth: 47.7 mm
• Weight per Piece: 7.6 g

🔒 Safety & Compliance:

• Overvoltage Category: III
• Pollution Degree: 3
• Surge Voltage Rating: 8 kV
• Flammability Rating: UL 94 V0
• Shock & Vibration Tested: DIN EN 50274
• RoHS & REACH Compliant
• Ex Marking: II 2 GD Ex eb IIC Gb (ATEX/IECEx)

🌡 Environmental Conditions:

• Operating Temperature: -60 °C to +85 °C
• Storage/Transport Temperature: -25 °C to +55 °C (short-term: -60 °C to +70 °C)
• Assembly Temperature: -5 °C to +70 °C
• Humidity (Storage/Transport): 30% – 70%

🧩 Compatible Accessories:

• End Cover: D-UT 2,5/10 (3047028)
• Plug-in Bridges: FBS 2-5, FBS 10-5, FBS 20-5
• Mounting Adapter: CLIPFIX 35
• Screwdriver: SZS 0,6X3,5
