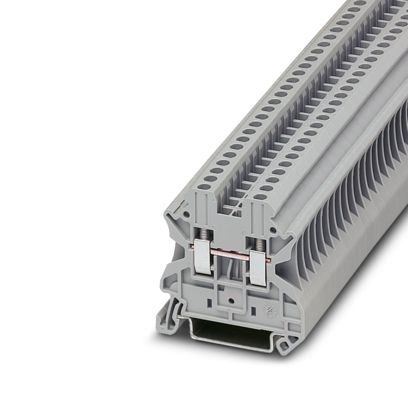

UT 6 – Feed-through Terminal Block | Phoenix Contact (3044131)

Screw connection. High capacity. Universal use.
The UT 6 terminal block offers a robust screw connection system for secure, maintenance-free wiring. Designed for versatility, it supports a wide conductor range and is ideal for control panels, railway systems, and process industries.

🔧 Technical Specifications:

• Part Number: 3044131
• Connection Method: Screw connection (M4 thread)
• Rated Voltage: 1000 V
• Rated Current: 41 A (up to 57 A with 10 mm² conductor)
• Rated Cross Section: 6 mm²
• Conductor Size Range:
• Rigid: 0.2 mm² – 10 mm²
• Flexible: 0.2 mm² – 10 mm²
• AWG: 24 – 8
• Stripping Length: 10 mm
• Mounting Type: DIN rail (NS 35/7.5, NS 35/15)
• Color: Gray (RAL 7042)
• Width: 8.2 mm
• Height: 47.5 mm
• Depth: 47 mm
• Weight per Piece: Approx. 12.5 g

🔒 Safety & Compliance:

• Overvoltage Category: III
• Pollution Degree: 3
• Surge Voltage Rating: 8 kV
• Flammability Rating: UL 94 V0
• Ex Marking: II 2 GD Ex eb IIC Gb (ATEX/IECEx)
• RoHS & REACH Compliant

🌡 Environmental Conditions:

• Operating Temperature: -60 °C to +110 °C
• Storage/Transport Temperature: -25 °C to +60 °C
• Humidity (Storage/Transport): 30% – 70%

🧩 Compatible Accessories:

• End Cover: D-UT 2,5/10 (3047028)
• Plug-in Bridges: FBS 2-8, FBS 3-8, FBS 4-8, FBS 5-8, FBS 10-8
• Mounting Adapter: CLIPFIX 35
• Screwdriver: SZS 1,0X4,0
