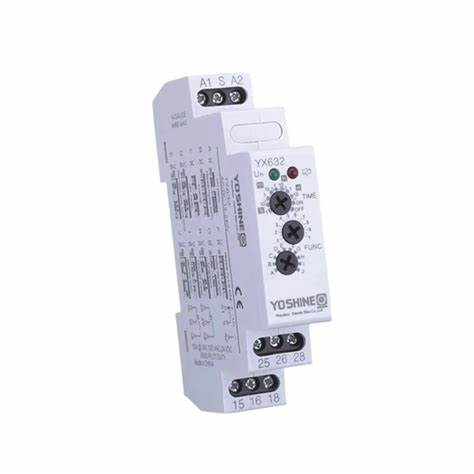

YX632 / YX532T – Multi-function Time Delay Relay

Rated Current: 16A
Control Voltage: Wide range 12–240V AC/DC
Mounting: DIN rail | Output Type: DPDT (2 Form C)

Key Specifications:

• Time Range: Adjustable from 0.1 seconds to 10 days
• Functions: 10 programmable modes, including:
• ON-delay
• OFF-delay
• Interval
• One-shot
• Flasher (cyclic ON/OFF)
• Pulse generator
• Watchdog
• Star-delta
• Symmetrical recycling
• Delay on release
• Reset Time: ≤150 ms
• Minimum Switching Current: 100 mA
• Contact Material: Silver alloy
• Operating Temperature: -10°C to +55°C
• Indicators: LED for power and output status
• Enclosure: Flame-retardant housing, IP20 terminals

Features:

• Wide voltage compatibility (12–240V AC/DC)
• Rotary dials for time and function selection
• Compact DIN-rail design for easy panel integration
• Long mechanical life and stable performance
• Ideal for both AC and DC control circuits

Applications:

• Conveyor and motor control
• Lighting automation
• HVAC sequencing
• Industrial process timing
• Safety interlocks and alarms
