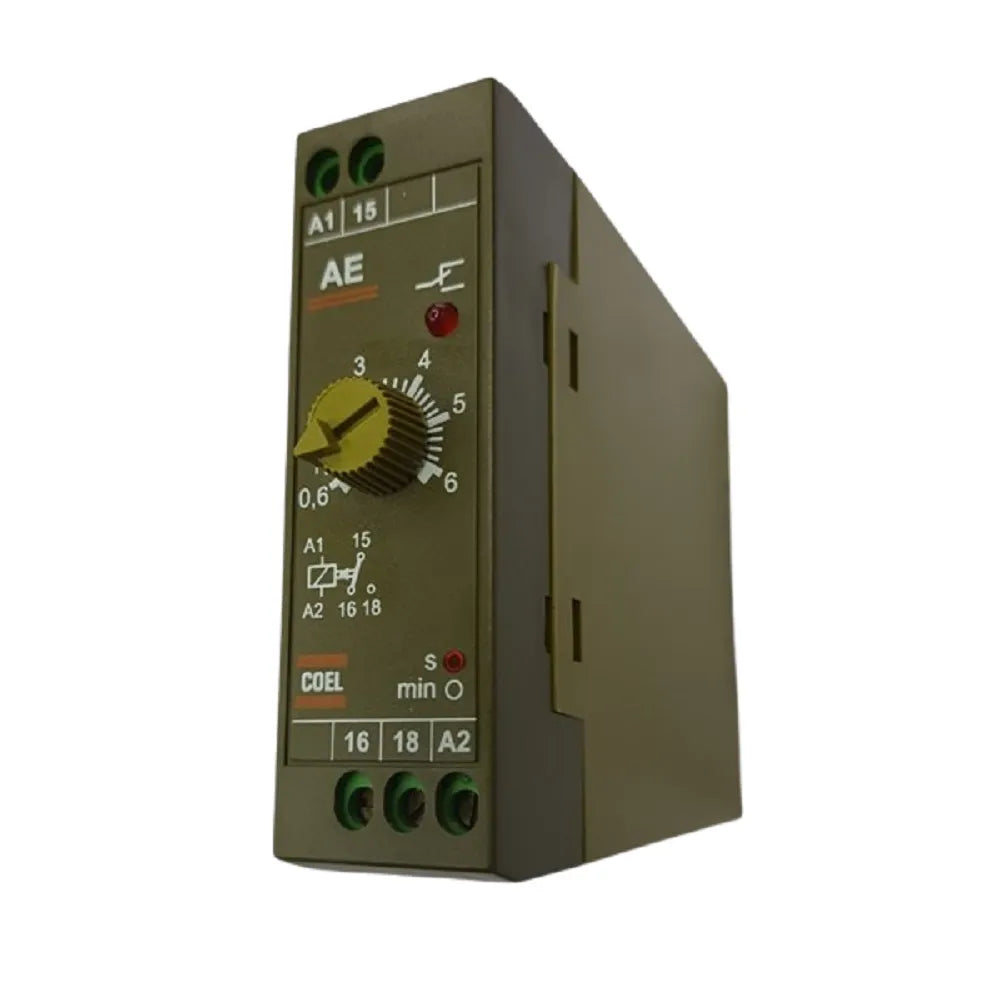

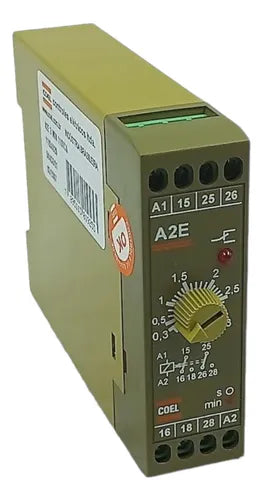

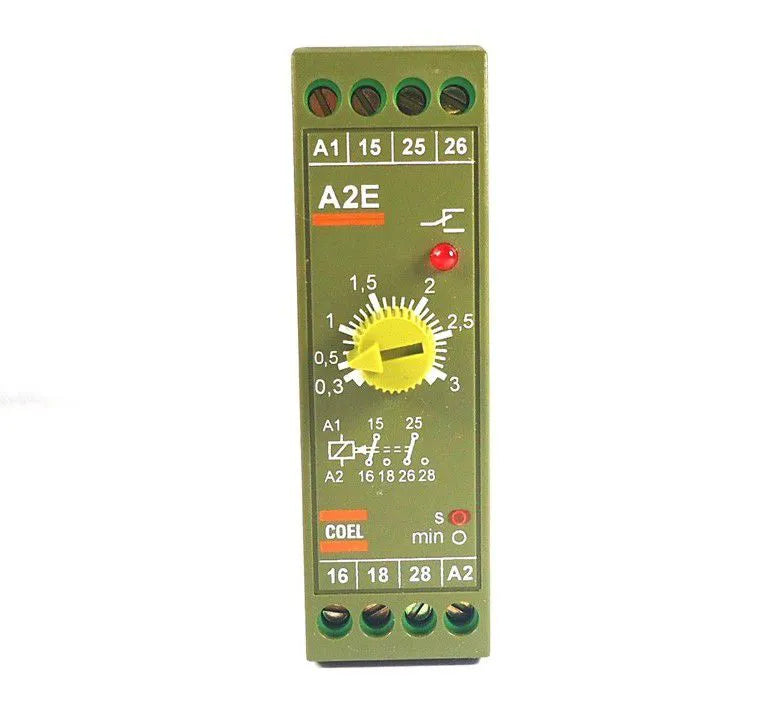

YXAE – Analog Time Delay Relay

Supply Voltage: 220V AC
Mounting: Din Rail Mount
Output Contacts: DPDT or 4PDT (2C or 4C)
Time Range: Adjustable from 0.1 seconds to 10 minutes (model-dependent)

Key Specifications:

• Timing Function: ON-delay (Power ON start)
• Contact Rating: 5A @ 250V AC / 30V DC (resistive load)
• Reset Time: ≤0.1s
• Repeat Accuracy: ±1%
• Setting Error: ±10% ±0.05s
• Operating Temperature: -10°C to +50°C
• Enclosure Protection: IP40 (front panel), IP20 (terminals)
• Indicators: LED for power and output status

Features:

• Rotary dial for precise time setting
• LED indicators for visual status feedback
• Compact DIN 48 × 48 mm housing
• Long mechanical life: ≥5 million operations
• Ideal for panel integration in tight spaces

Applications:

• Conveyor and motor delay control
• Lighting and HVAC sequencing
• Process timing in automation panels
• Safety interlocks and alarms
